SpacePole Indoor enclosures
SPDS1000 Series
The SpacePole Digital Signage indoor enclosure provides an eye-catching solution for mounting your digital signage screens. Consumers expect a joined-up sales strategy, meaning that what they find in-store reflects what that they find online. Digital signage is the platform to bring those multichannel messages together, allowing retailers to draw the attention of customers both in-store and passing by.
With its secure and stable design, it is ideal for the retail, hospitality, and entertainment industries to drive digital engagement with customers and end-users.
Features
Small Footprint & Consistent Design: Across our indoor product range (Wall, Floor or Window mounted versions)
Safety and Security: Protective safety glass included with each enclosure as well as top and bottom security screws
Designed and manufactured in Denmark: Short lead times with a focus on simplicity, quality and sustainability
Easy installation & Maintenance: The modular design ensures that the solutions can be assembled without the use of mechanical lifting equipment whilst also providing easy removal of the screen for maintenance
Customization: Available in a wide range of colours, with the ability to add your own corporate touch
Benefits
Space optimization with “one look”: Designed with a minimal footprint for space optimization on the retail floor, maintaining your “look & feel” throughout the store
Safe and secure: Protecting your customers and preventing tampering or theft of the screen
Sustainability: The slim enclosure is designed and manufactured in line with our core value to respect the planet
Cost-effective installation & Maintenance: Saves time and cost in installation as well as maintenance of the display when easy access is required
Make it your Own: Including the use of your corporate colors, logo and brand identity

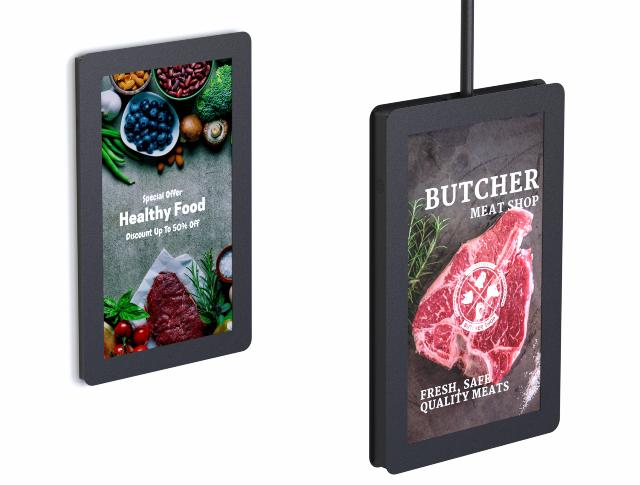

Wall and Ceiling mounting options
Specifications
| SPDS1000 | SPDS1001 | SPDS1100 | SPDS1101 / SPDS1102 / SPDS1103 | |
|---|---|---|---|---|
| Product description | Indoor wall mounted enclosure Single sided (SPDS1000) | Indoor enclosure Single sided (SPDS1001) | Indoor base pole 730mm (SPDS1100) |
Indoor adjustable window mount |
| Compatible SpacePole accessories | Indoor base pole: 730mm (SPDS1100) Indoor adjustable window mount: 956-1305mm (small) (SPDS1101) 1310-1950mm (medium) (SPDS1102) 1510- 2300mm (large) (SPDS1103) |
Indoor enclosure - Single sided (SPDS1001) | ||
| Compatible hardware | Samsung displays QH55R / QH55B Other displays can be supported on request |
|||
| Mounting | VESA 200 / 200 | |||
| Features |
Hinged door - easy access to screen for maintenance Security screws to prevent unauthorised access With 4mm safety glass (EN12600 protects screen) Hook-on VESA bracket for easy installation Same enclosure design as SPDS1000 and SPDS1001 for consistent look & feel throughout the store |
Minimal footprint for space optimisation at the floor | Adjustable to accommodate different window sizes with the same mount | |
| Weight limit (hardware) | 25kg | 25kg | 55kg | 55kg |
| Material / Warranty | Painted metal / 5 years warranty | |||
| Product Dimensions/ Weight | H1420x W890 x L100mm 44 kg / 97.00 lbs |
H1420 x W890 x L150mm 55 kg | 121.30 lbs |
H730 x W250 x L150mm 5 kg | 11.02 lbs |
Indoor adjustable window mount: H160 x W78 x L956 - 1305mm (small) H160 x W78 x L1310 - 1950m (medium) H160 x W78 x L1510 - 2300mm (large) |
| Installation guide | MK15-0377 | MK15-0378 | MK15-0380 | MK15-03820 |
| Mounting options | Wall (Fixings not included) |
Floor or Window |
Flat concrete surface (Chemical anchors required. Not included) |
Window: Concrete or wooden material (Fixings not included) |
| Cable management | Yes (internal) | N/A | ||
Both the SPDS1000 and the SPDS1001 have passed the Samsung Design Review process
