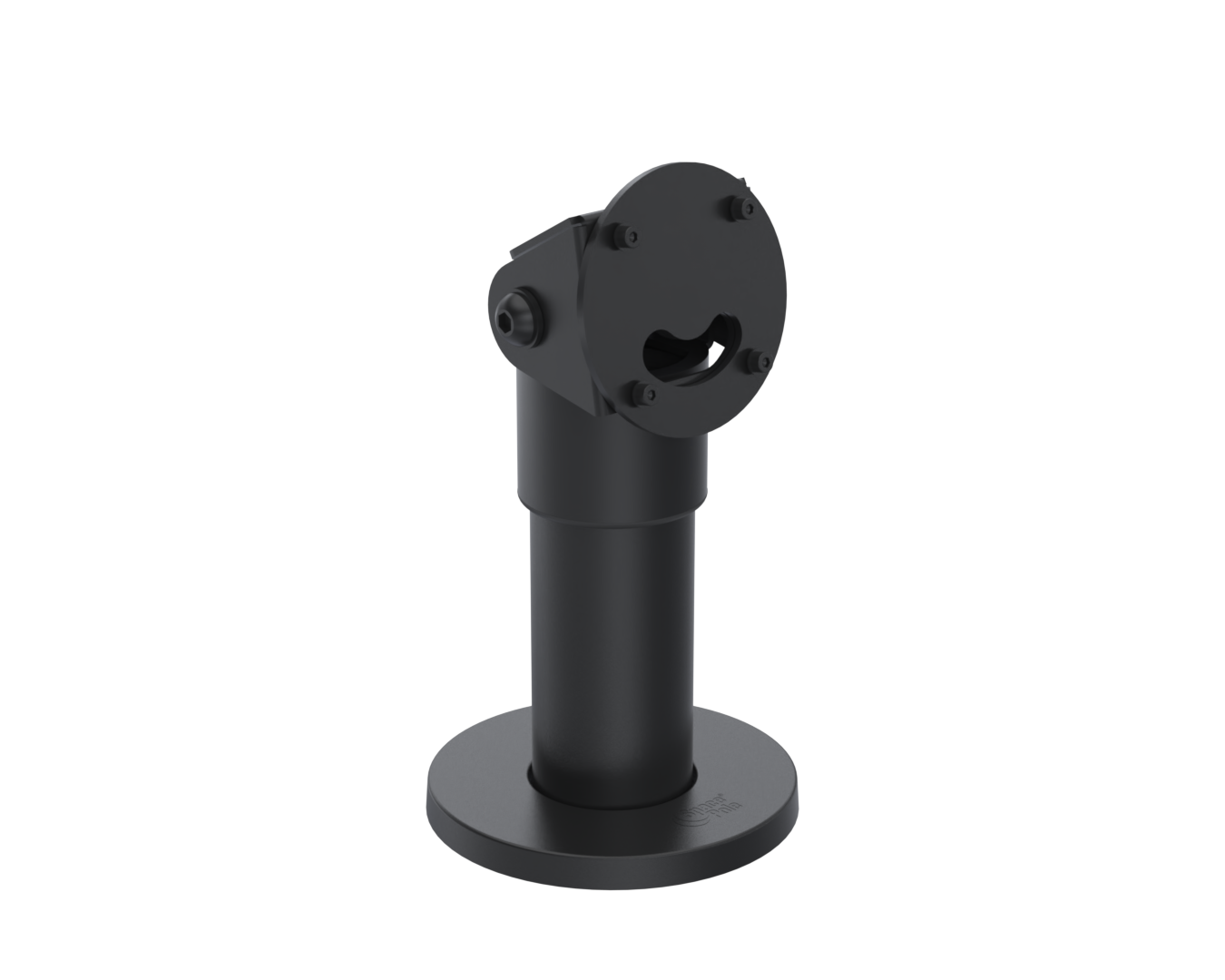

TabTilt Portrait / Landscape on 120mm SP2 pole with rotation slot
SPM131
TabTilt Portrait / Landscape on 120mm SP2 pole with rotation slot
-
- Compatible with a wide range of tablets using the VESA 40 x 40 mounting standard
- 210° rotation for easy operator-customer interaction
- Height-adjustable, 120mm SP2 pole with rotation slot
- Supports screen sizes from 7” to 12.9”
- 5 kg max load capacity
- 5-year warranty
Other colours available
Product Enquiry
If you have any queries about the product, pricing, or purchasing options, please click the button below.
Product Specifications
| Main material | Metal |
|---|---|
| Product Version | 1.1 |
| Angle of rotation | 210 |
| Base Type | Standard flange Footprint Ø97mm |
| Height adjustable? | No |
| Lock Type | ClickSafe |
| Mounting | VESA |
| Mounting Type | Counter |
| Pole diameter type | SP2 inner = 44.5mm |
| Unit Weight | 1.57 lbs |
| Unit Depth | 4.1 in |
| Unit Height | 7 in |
| Unit Width | 4.1 in |
| Units per Box | 1 |
| Box Weight | 1.65 lbs |
| Box Depth | 5.9 in |
| Box Height | 4.5 in |
| Box Width | 5.3 in |
| Warranty | 5 Years |
Installation Guide
| Name | Download | File type | |
|---|---|---|---|
|
|
MK15-0271-A4-2Sides vers.1.1 (TabTilt Solutions Installation Guide).pdf | 818 KB |
Family Features
-
Wide range of mounting options available - Floor, counter and wall
Family Benefits
-
For applications such as information look up points, front of house and digital signage
