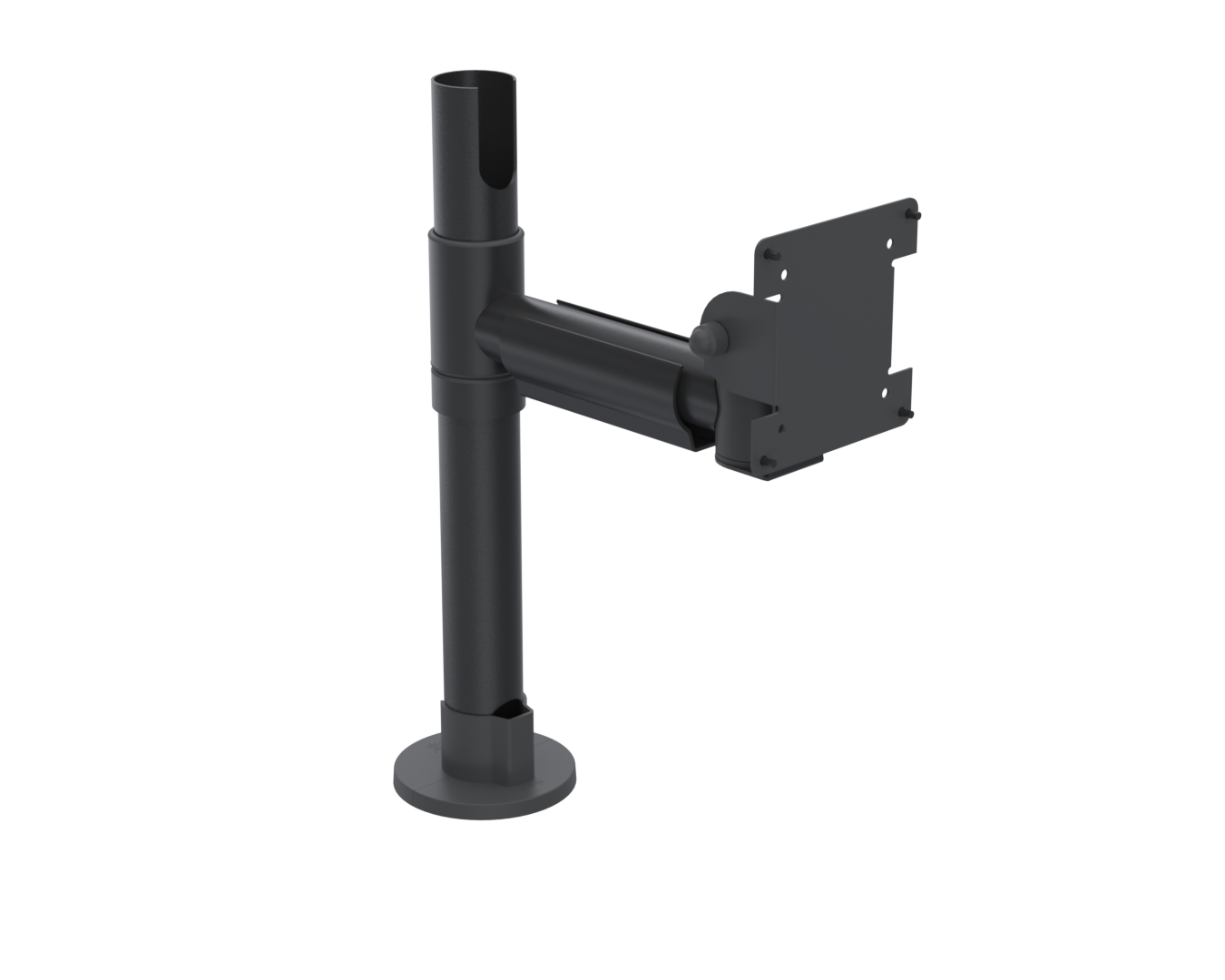

SpacePole Screen Mount with 200mm Swingarm, VESA - High tension
SPV1104-H-FX
Stylishly mount your touch POS display screens
Our popular Swing Arm provides an ergonomic solution where peripherals or the screen itself is needed to swing between the operator and customer. This allows the customer to view the screen for confirmation of an order, or to rotate the payment terminal from the operator to the customer or vice-versa.
-
- Compatible with VESA 75 and VESA 100 mounting hole patterns
- Provides strong resistance, with a tension range of 7.5 to 10 kg, suitable for high-intensity applications or advanced strength training.
- Enhances workstation productivity by enabling optimal screen placement within the operator's eyeline.
- Features a 200mm swingarm for easy screen and peripheral movement, ideal for dynamic interactions between operator and customer.
- 5-year warranty
Product Specifications
| Main material | Metal |
|---|---|
| Screen setup | Single-sided |
| Product Version | 1.0 |
| Angle of rotation | 310 |
| Base Type | Standard flange Footprint Ø97mm |
| Color Name | Black, grey, white |
| Height adjustable? | No |
| Screen size supported | 11" , 12" , 13" , 15" , 17" , 19" , 21" , 22" , 24" , 27" |
| Max VESA mount weight (kg) | 12 |
| Mounting | VESA |
| Mounting Type | Counter |
| Screws included? | Yes |
| Tilt angle range | +10 to -70° |
| Unit Depth | 12.3 in |
| Unit Height | 15.9 in |
| Unit Width | 4.5 in |
| Unit Weight | 4.08 lbs |
| Units per Box | 1 |
| Pole diameter type | SP2 inner = 44.5mm |
| Box Depth | 23.6 in |
| Box Height | 5.1 in |
| Box Width | 5.1 in |
| Box Weight | 4.28 lbs |
| Warranty | 5 Years |
Installation Guide
| Name | Download | File type | |
|---|---|---|---|
|
|
MK15-0168-A4-2Sides vers.1.4 (Essentials Arm Screen Mount Installation Guide).pdf | 917 KB |
Family Features
-
Includes a wide range of interchangeable accessories to support different hardware options including payment devices, receipt printers, scanners and customer displays - Compatibility with solutions VESA 75/100
Family Benefits
-
Configure your SpacePole POS solutions
