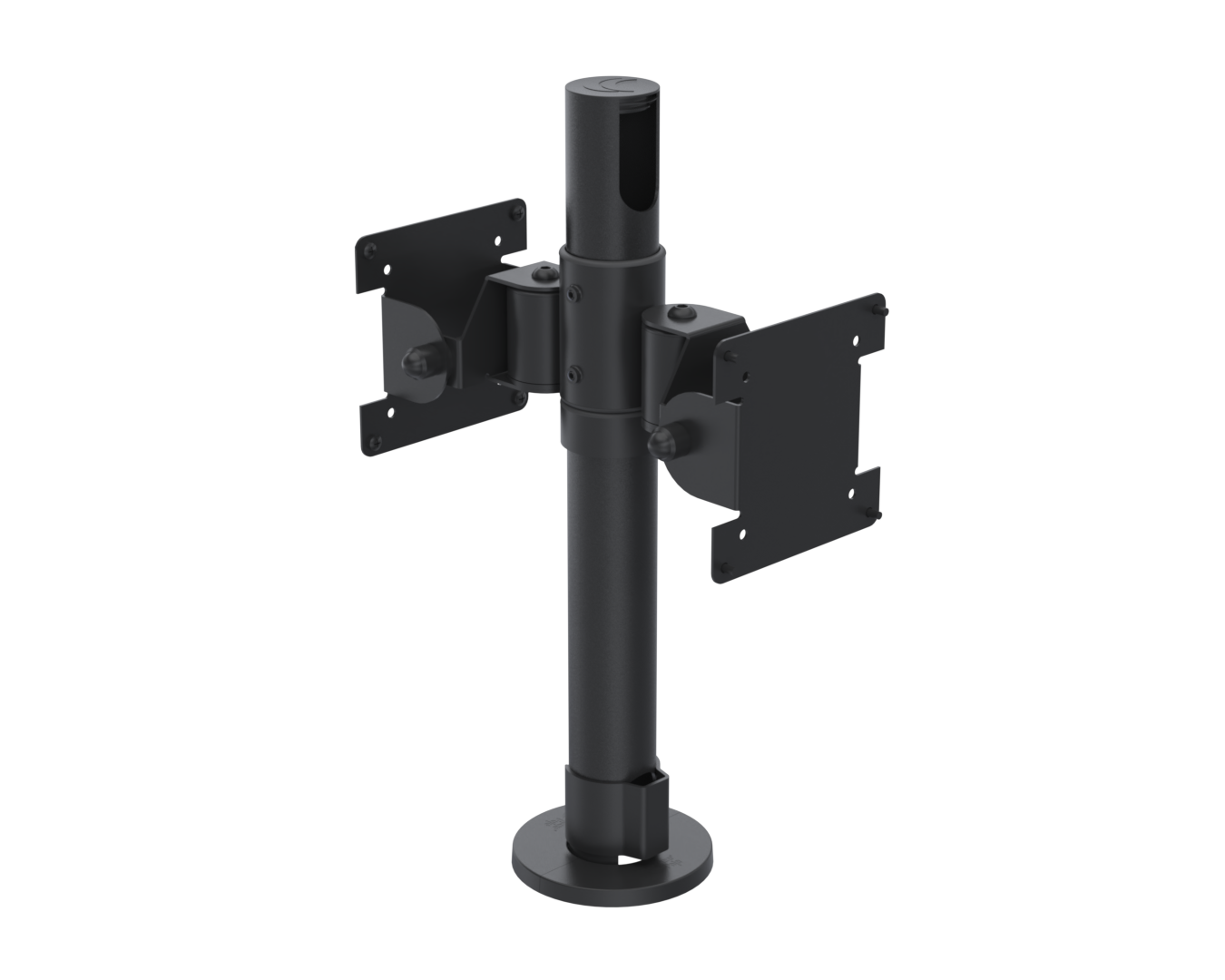

SpacePole Back-to-back Screen Mount, VESA 75/100 - High tension
SPV1103-H-FX
Stylishly mount your touch POS display screens
This back-to-back mount is used when the solution requires dual screens, maximizing display space without compromising counter space. This type of mounting solution is particularly useful in POS environments where efficient use of space is critical. By mounting two screens back-to-back, it optimizes viewing angles for both the operator and the customer, enhancing the user experience and potentially freeing up valuable counter space.
-
- Enables dual-screen mounting with VESA 75 and VESA 100 compatibility.
- Provides strong resistance, with a tension range of 7.5 to 10 kg, suitable for high-intensity applications or advanced strength training.
- Enhances workstation productivity by enabling optimal screen placement within the operator's eyeline.
- 5-year warranty
Product Specifications
| Main material | Metal |
|---|---|
| Screen setup | Back-to-back |
| Product Version | 1.0 |
| Angle of rotation | 310 |
| Base Type | Standard flange Footprint Ø97mm |
| Color Name | Black, grey, white |
| Height adjustable? | No |
| Screen size supported | 11" , 12" , 13" , 15" , 17" , 19" , 21" , 22" , 24" , 27" |
| Max VESA mount weight (kg) | 12 |
| Mounting | VESA |
| Mounting Type | Counter |
| Screws included? | Yes |
| Tilt angle range | +10 to -70° |
| Unit Depth | 9.6 in |
| Unit Height | 15.9 in |
| Unit Width | 4.5 in |
| Unit Weight | 4.65 lbs |
| Units per Box | 1 |
| Pole diameter type | SP2 inner = 44.5mm |
| Box Depth | 15.7 in |
| Box Height | 11.8 in |
| Box Width | 5.3 in |
| Box Weight | 4.89 lbs |
| Warranty | 5 Years |
Installation Guide
| Name | Download | File type | |
|---|---|---|---|
|
|
MK15-0167-A4-2Sides vers.1.4 (Essentials Back-to-Back Screen Mount Installation Guide).pdf | 1104 KB |
Family Features
-
Includes a wide range of interchangeable accessories to support different hardware options including payment devices, receipt printers, scanners and customer displays - Compatibility with solutions VESA 75/100
Family Benefits
-
Configure your SpacePole POS solutions
