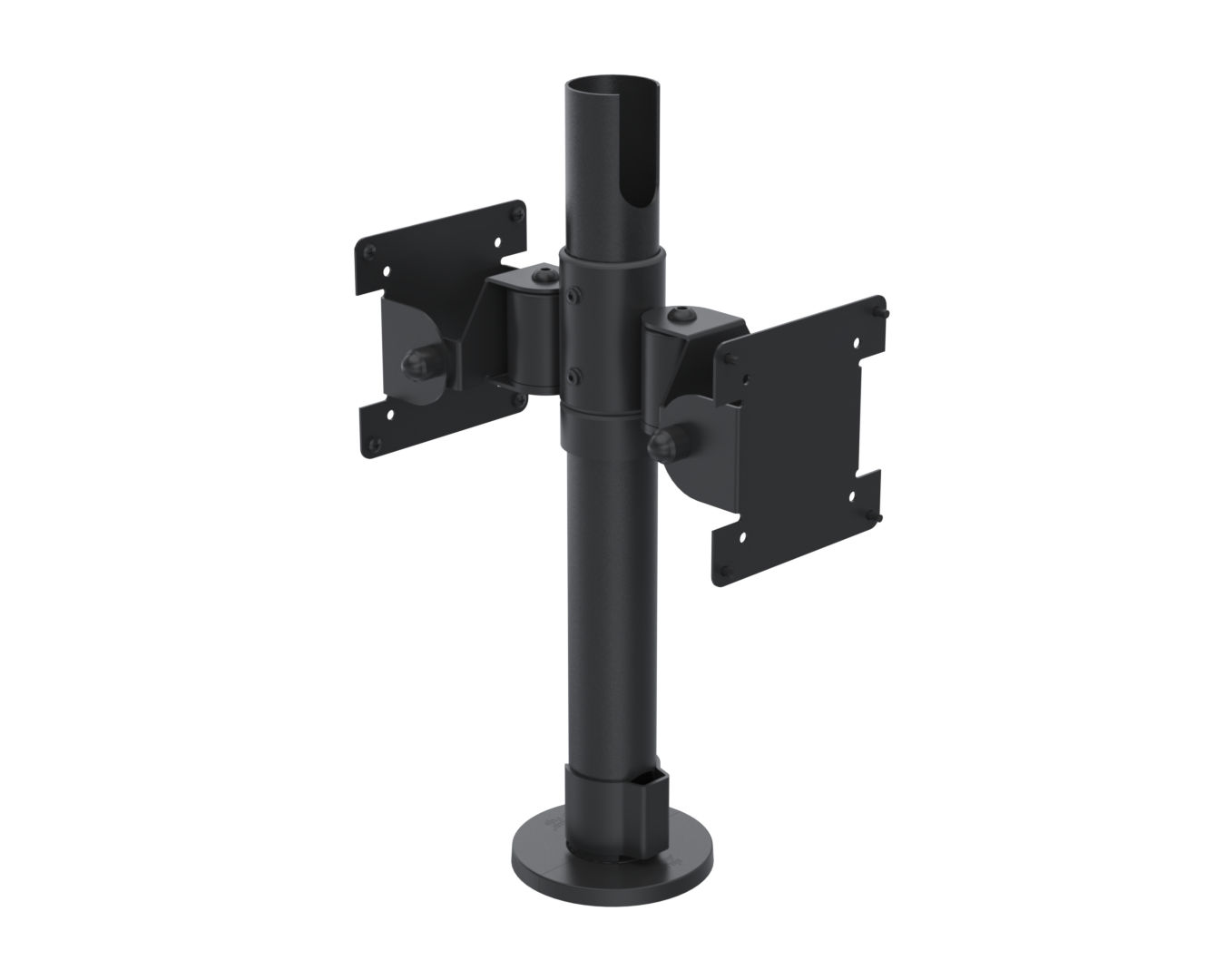

SpacePole Back-to-back Screen Mount, VESA 75/100
Stylishly mount your touch POS display screens
The top mount is used when the solution requires space for the attachment of other peripherals such as a swing arm for a printer or payment terminal to the SpacePole – in addition to the screen. This type of mounting solution is particularly useful where the actual space on the counter itself is limited. Raising the technology above the counter frees up any space that is available.
-
- Enables dual-screen mounting with VESA 75 and VESA 100 compatibility.
- Enhances workstation productivity by enabling optimal screen placement within the operator's eyeline.
- 5-year warranty
Product Specifications
| Main material | Metal |
|---|---|
| Screen setup | Back-to-back |
| Product Version | 1.1 |
| Angle of rotation | 310 |
| Base Type | Standard flange Footprint Ø97mm |
| Color Name | Black, grey, white |
| Height adjustable? | No |
| Screen size supported | 11" , 12" , 13" , 15" , 17" , 19" , 21" , 22" , 24" , 27" |
| Max VESA mount weight (kg) | 10 |
| Mounting | VESA |
| Mounting Type | Counter |
| Screws included? | Yes |
| Tilt angle range | +10 to -70° |
| Unit Depth | 9.6 in |
| Unit Height | 15.9 in |
| Unit Width | 4.5 in |
| Unit Weight | 4.65 lbs |
| Units per Box | 1 |
| Pole diameter type | SP2 inner = 44.5mm |
| Box Depth | 23.6 in |
| Box Height | 5.1 in |
| Box Width | 5.1 in |
| Box Weight | 4.89 lbs |
| Warranty | 5 Years |
Installation Guide
| Name | Download | File type | |
|---|---|---|---|
|
|
MK15-0167-A4-2Sides vers.1.4 (Essentials Back-to-Back Screen Mount Installation Guide).pdf | 1104 KB |
Family Features
-
Design compliance: With a trend towards lighter and slimmer POS display screens, SpacePole Arc places a greater emphasis on the design and aesthetics of your complete POS solution
Maximum adjustability: A smooth tilt screen operation for screens weighing up to 12kg without any adjustment. Secondly, keyholes for quick mounting and servicing, and lower screw holes to level screens on slight angled Surfaces
Upgradeability: Replace your current VESA mount without changing your existing SpacePole installation
Hygienic: Antimicrobial powder coating (IGP-DURA®care) as standard for all black (02) metal solutions
Family Benefits
-
Stimulate sales: Complement your environment with a more modern look
Maximise your investment: With a quick and easy installation as well as providing efficiency to operators, setting the display to their personal preferences
Improve your existing POS installation: Enhanced looks, ease of adjustment, and operator ergonomics
Keep your team safe: Give associates the safe working environment they expect
