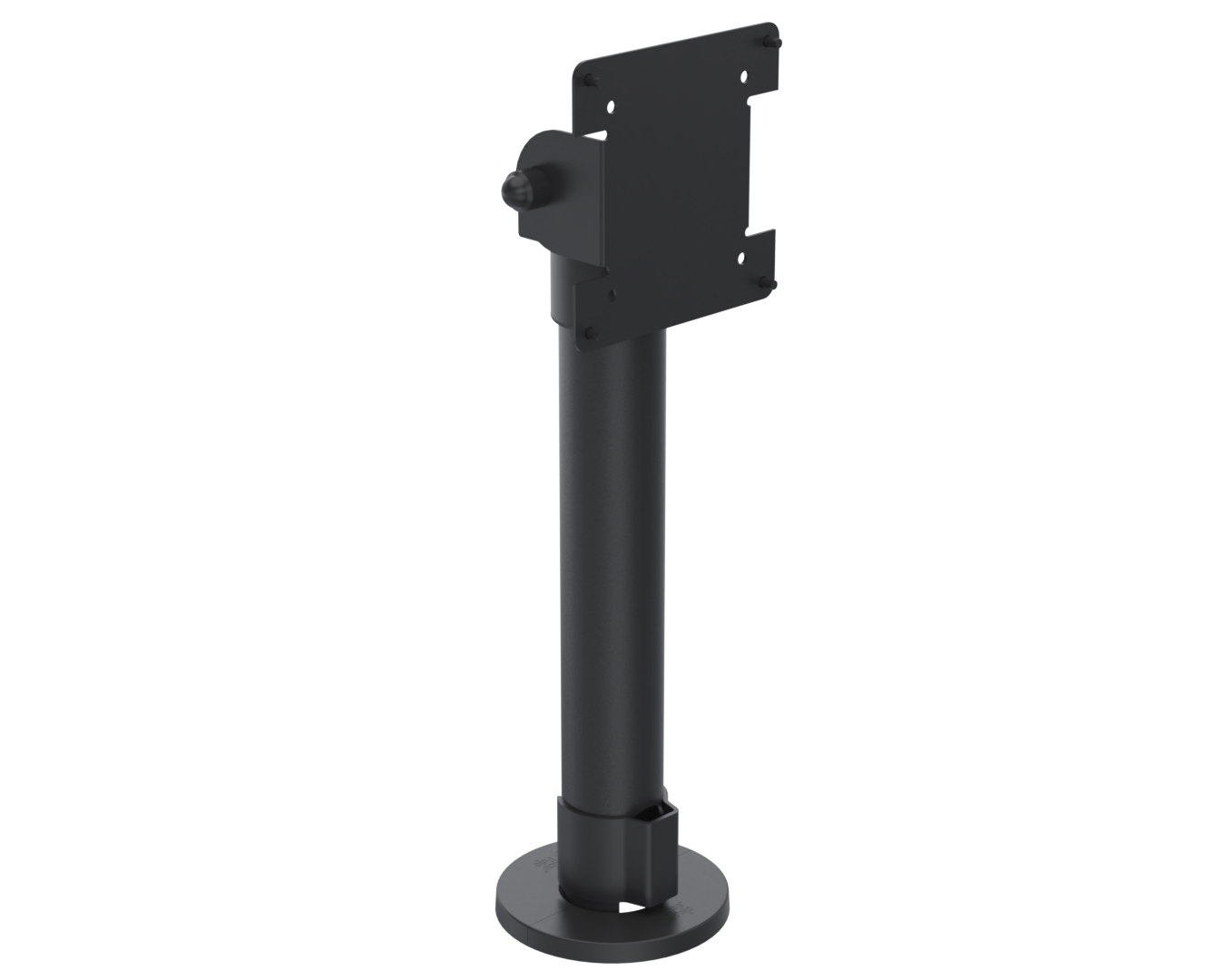

VESA 75/100 Pole Mount, Top Screen Mount - High tension
SPV1102-H-FX
Stylishly mount your touch POS display screens
The top mount is used when the solution requires space for the attachment of other peripherals such as a swing arm for a printer or payment terminal to the SpacePole – in addition to the screen. This type of mounting solution is particularly useful where the actual space on the counter itself is limited. Raising the technology above the counter frees up any space that is available.
-
- Compatible with VESA 75 and VESA 100 mounting hole patterns
- Provides strong resistance, with a tension range of 7.5 to 10 kg, suitable for high-intensity applications or advanced strength training.
- Enhances workstation productivity by enabling optimal screen placement within the operator's eyeline.
- 5-year warranty
Product Specifications
| Main material | Metal |
|---|---|
| Screen setup | Single-sided |
| Product Version | 1.0 |
| Angle of rotation | 310 |
| Base Type | Standard flange Footprint Ø97mm |
| Color Name | Black, grey, white |
| Height adjustable? | No |
| Screen size supported | 11" , 12" , 13" , 15" , 17" , 19" , 21" , 22" , 24" , 27" |
| Max VESA mount weight (kg) | 12 |
| Mounting | VESA |
| Mounting Type | Counter |
| Screws included? | Yes |
| Tilt angle range | +10 to -70° |
| Unit Depth | 3.5 in |
| Unit Height | 15.2 in |
| Unit Width | 4.5 in |
| Unit Weight | 2.62 lbs |
| Units per Box | 1 |
| Pole diameter type | SP2 inner = 44.5mm |
| Box Depth | 23.6 in |
| Box Height | 5.1 in |
| Box Width | 5.1 in |
| Box Weight | 2.76 lbs |
| Warranty | 5 Years |
Installation Guide
| Name | Download | File type | |
|---|---|---|---|
|
|
MK15-0166-A4-2Sides vers.1.4 (Essentials Top Screen Mount Installation Guide).pdf | 884 KB |
Family Features
-
Includes a wide range of interchangeable accessories to support different hardware options including payment devices, receipt printers, scanners and customer displays - Compatibility with solutions VESA 75/100
Family Benefits
-
Configure your SpacePole POS solutions
