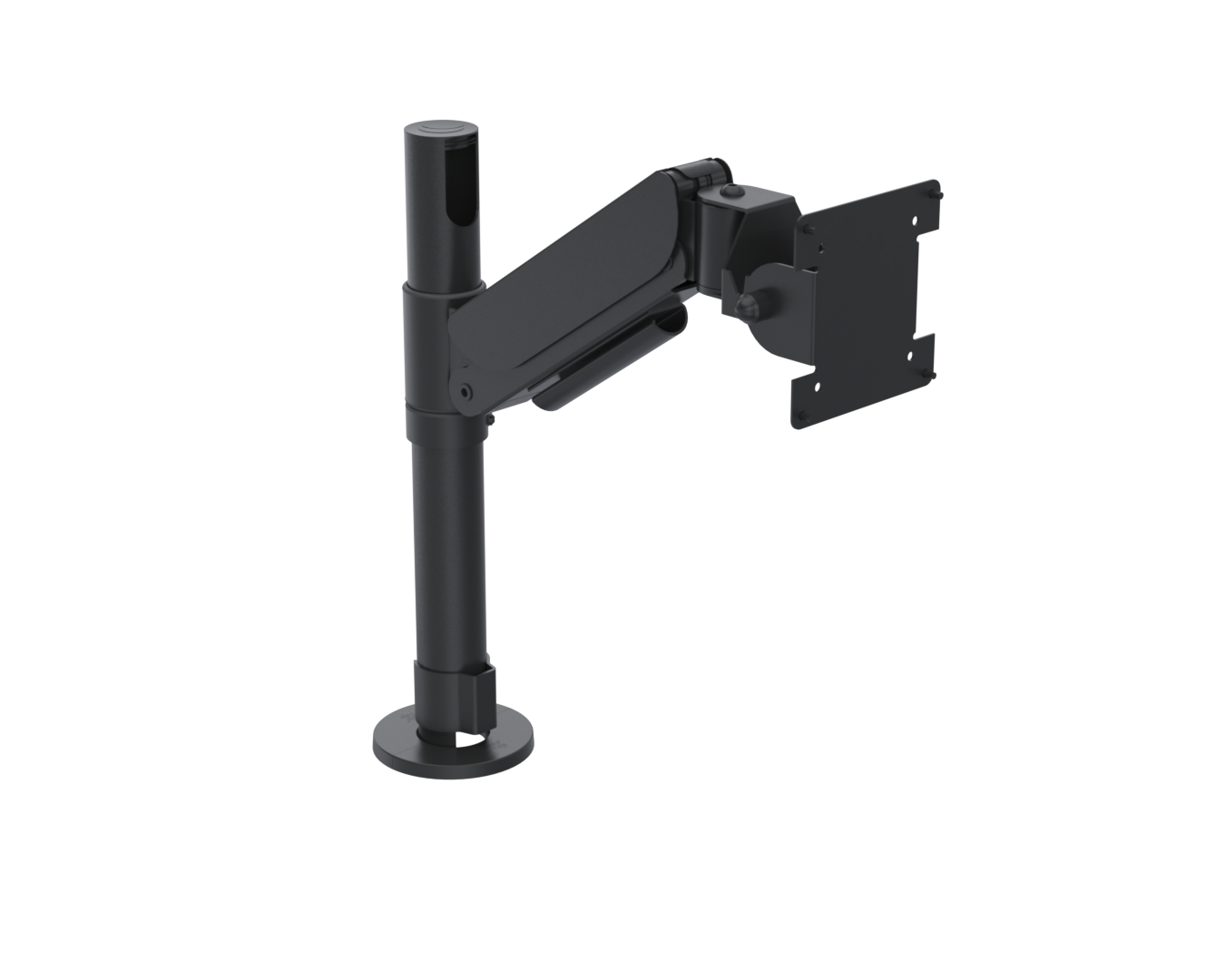

VESA 75/100 Pole Mount, Height-adjustable Screen Mount - Light Tension (2.5 - 5kg)
Stylishly mount your touch POS display screens
The Height Adjustable Arm is an ergonomically designed mounting solution that reduces the possibility of Repetitive Strain Injury (RSI), whilst assisting productivity at the workstation.
Where space allows, the height adjustable arm enables the screen to be raised or lowered to the appropriate eyeline of the operator. It may also be used to mount a keyboard or other peripherals.
The arm is of course fully compatible with our signature SpacePole range of technology mounting solutions and provides rotation on the pole and independently for the screen proving as much flexibility as possible for the user.
The Height Adjustable Arm can be mounted in front of the operator if space permits, (dependent on depth of counter) or to one side with screen located in front of the operator, mounted on the arm.
-
- Compatible with VESA 75 and VESA 100 mounting hole patterns
- Provides light resistance, with a tension range of 2.5 to 5 kg, suitable for low to mid-intensity applications or gradual progression.
- Allows easy adjustment of screen height, promoting ergonomic positioning
- 5-year warranty
Product Specifications
| Main material | Metal |
|---|---|
| Screen setup | Single-sided |
| Product Version | 1.0 |
| Angle of rotation | 310 |
| Base Type | Standard flange Footprint Ø97mm |
| Color Name | Black, grey, white |
| Height adjustable? | Yes |
| Screen size supported | 11" , 12" , 13" , 15" , 17" , 19" , 21" , 22" , 24" , 27" |
| Max VESA mount weight (kg) | 5 |
| Mounting | VESA |
| Mounting Type | Counter |
| Screws included? | Yes |
| Tilt angle range | +10 to -70° |
| Unit Depth | 15.5 in |
| Unit Height | 15.9 in |
| Unit Width | 4.5 in |
| Unit Weight | 6.24 lbs |
| Units per Box | 1 |
| Pole diameter type | SP2 inner = 44.5mm |
| Box Depth | 23.6 in |
| Box Height | 5.1 in |
| Box Width | 5.1 in |
| Box Weight | 6.55 lbs |
| Warranty | 5 Years |
Installation Guide
| Name | Download | File type | |
|---|---|---|---|
|
|
MK15-0169-A4-2Sides vers.1.3 (Essentials Height Adjustable Screen Mount Installation Guide).pdf | 1314 KB |
Family Features
-
Design compliance: With a trend towards lighter and slimmer POS display screens, SpacePole Arc places a greater emphasis on the design and aesthetics of your complete POS solution
Maximum adjustability: A smooth tilt screen operation for screens weighing up to 12kg without any adjustment. Secondly, keyholes for quick mounting and servicing, and lower screw holes to level screens on slight angled Surfaces
Upgradeability: Replace your current VESA mount without changing your existing SpacePole installation
Hygienic: Antimicrobial powder coating (IGP-DURA®care) as standard for all black (02) metal solutions
Family Benefits
-
Stimulate sales: Complement your environment with a more modern look
Maximise your investment: With a quick and easy installation as well as providing efficiency to operators, setting the display to their personal preferences
Improve your existing POS installation: Enhanced looks, ease of adjustment, and operator ergonomics
Keep your team safe: Give associates the safe working environment they expect
