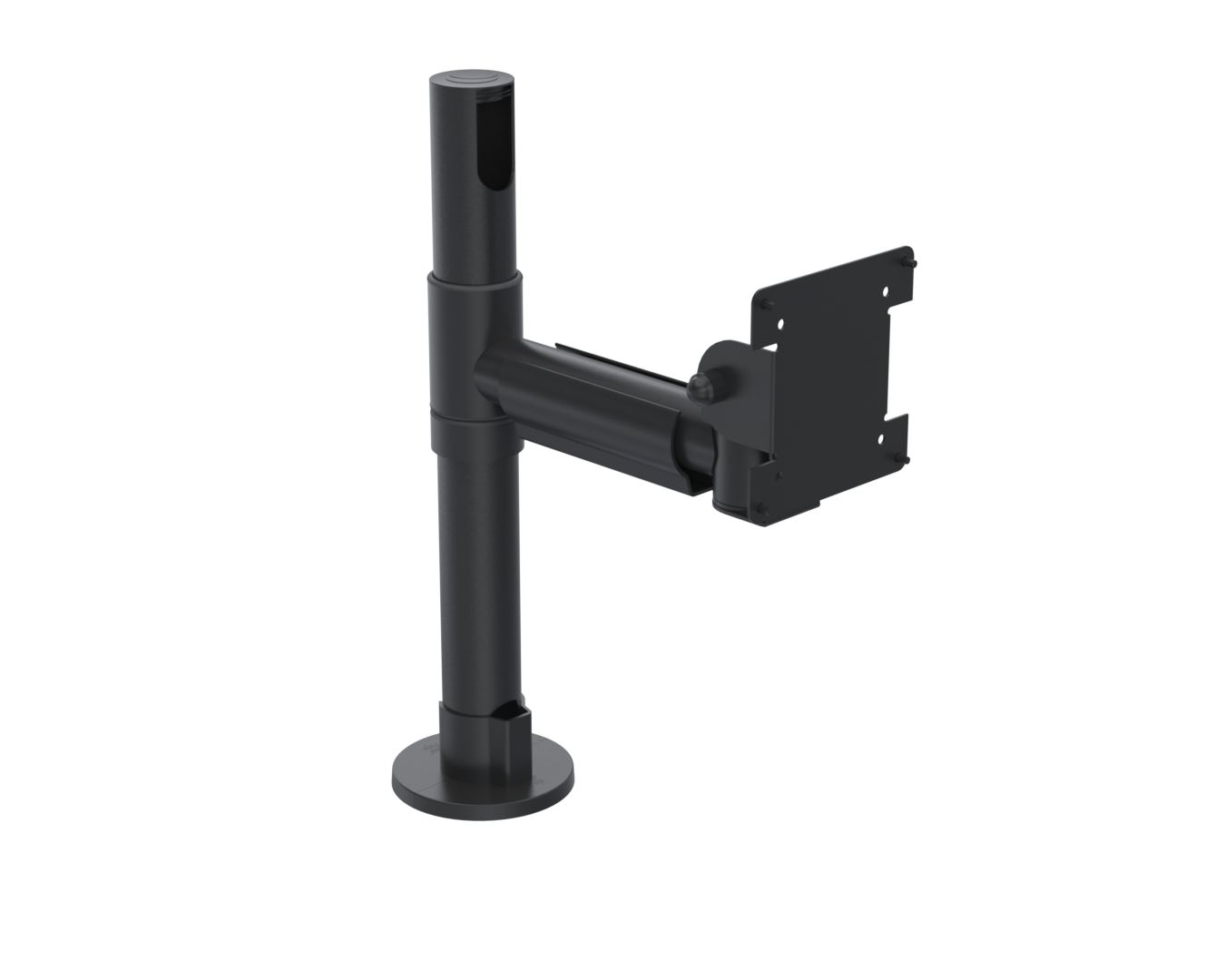

New SpacePole Screen Mount with 200mm Swingarm, VESA 75/100
Stylishly mount your touch POS display screens
Our popular Swing Arm provides an ergonomic solution where peripherals or the screen itself is needed to swing between the operator and customer. This allows the customer to view the screen for confirmation of an order, or to rotate the payment terminal from the operator to the customer or vice-versa.
-
- Compatible with VESA 75 and VESA 100 mounting hole patterns
- Enhances workstation productivity by enabling optimal screen placement within the operator's eyeline.
- Features a 200mm swingarm for easy screen and peripheral movement, ideal for dynamic interactions between operator and customer.
- 5-year warranty
Product Specifications
| Main material | Metal |
|---|---|
| Screen setup | Single-sided |
| Product Version | 1.0 |
| Angle of rotation | 310 |
| Base Type | Standard flange Footprint Ø97mm |
| Color Name | Black, grey, white |
| Height adjustable? | No |
| Screen size supported | 11" , 12" , 13" , 15" , 17" , 19" , 21" , 22" , 24" , 27" |
| Max VESA mount weight (kg) | 10 |
| Mounting | VESA |
| Mounting Type | Counter |
| Screws included? | Yes |
| Tilt angle range | +10 to -70° |
| Unit Depth | 12.2 in |
| Unit Height | 15.9 in |
| Unit Width | 4.5 in |
| Unit Weight | 4.08 lbs |
| Units per Box | 1 |
| Pole diameter type | SP2 inner = 44.5mm |
| Box Depth | 23.6 in |
| Box Height | 5.1 in |
| Box Width | 5.1 in |
| Box Weight | 4.28 lbs |
| Warranty | 5 Years |
Installation Guide
| Name | Download | File type | |
|---|---|---|---|
|
|
MK15-0168-A4-2Sides vers.1.4 (Essentials Arm Screen Mount Installation Guide).pdf | 917 KB |
Family Features
-
Design compliance: With a trend towards lighter and slimmer POS display screens, SpacePole Arc places a greater emphasis on the design and aesthetics of your complete POS solution
Maximum adjustability: A smooth tilt screen operation for screens weighing up to 12kg without any adjustment. Secondly, keyholes for quick mounting and servicing, and lower screw holes to level screens on slight angled Surfaces
Upgradeability: Replace your current VESA mount without changing your existing SpacePole installation
Hygienic: Antimicrobial powder coating (IGP-DURA®care) as standard for all black (02) metal solutions
Family Benefits
-
Stimulate sales: Complement your environment with a more modern look
Maximise your investment: With a quick and easy installation as well as providing efficiency to operators, setting the display to their personal preferences
Improve your existing POS installation: Enhanced looks, ease of adjustment, and operator ergonomics
Keep your team safe: Give associates the safe working environment they expect
