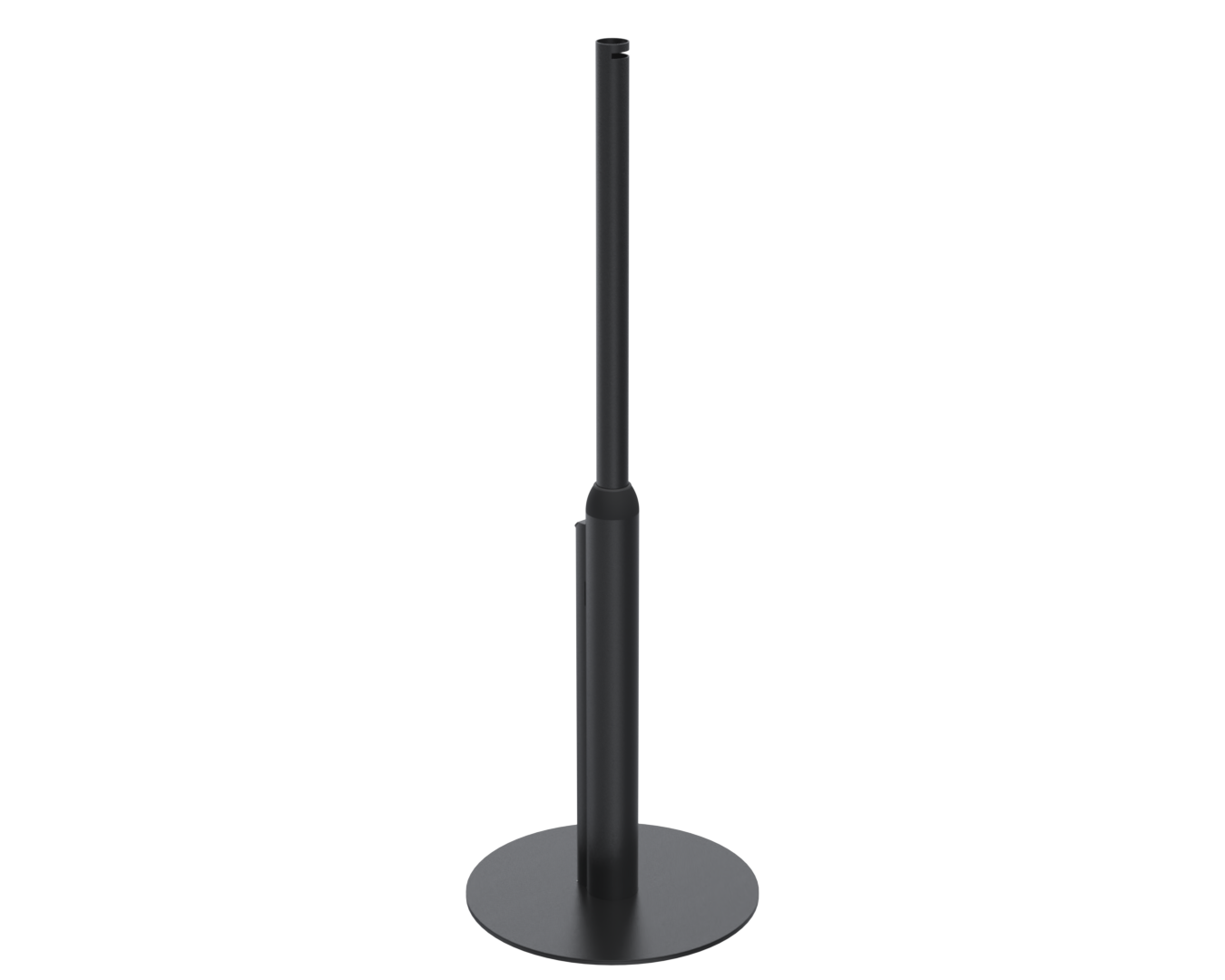

Height Adjustable Floor stand with rotation slot
Stylishly mount your touch POS display screens
A versatile floor stand and perfect for retail- hospitality- and entertainment environments. The SPM146 is height adjustable (680 mm to 1060mm) and complies with ADA legislation, ensuring accessibility for all.
The floor stand offers the option to use any of our top mount modules, including VESA 100/VESA 75, TabPOS TabTilt™ and SpacePole DuraTilt®.
Toolless assembly of the floor stand and internal cable management provide quick, safe and efficient implementation and minimal maintenance. When not in use, it can be folded away using minimal storage space.
The SPM146 floor stand is a stable, elegant, durable and very versatile solution that caters for all your needs.
-
- Supports out top mount modules e.g. Arc for VESA 75 and VESA 100, TabPOS TabTilt™ or SpacePole DuraTilt® for versatile options.
- Adjusts from 680 mm to 1060 mm, providing flexibility to accommodate various user needs while enabling smooth screen rotation.
- Includes internal cable management for a clean, organized setup and minimal maintenance.
- Combines style with function, enhancing the appearance of any space while serving practical purposes.
- 5-year warranty
Product Specifications
| Main material | Metal |
|---|---|
| Product Version | 1.0 |
| Angle of rotation | 210 |
| Color Name | Black, grey, white |
| Screws included? | Yes |
| Unit Depth | 14.2 in |
| Unit Height | 41.7 in |
| Unit Width | 14.2 in |
| Unit Weight | 17.77 lbs |
| Units per Box | 1 |
| Box Depth | 23.6 in |
| Box Height | 15.7 in |
| Box Width | 7.9 in |
| Box Weight | 18.65 lbs |
| Warranty | 5 Years |
Installation Guide
| Name | Download | File type | |
|---|---|---|---|
|
|
MK15-0445_V.1.0 (Height adjustable Floor stand_ rotation slot).pdf | 432 KB |
Family Features
-
Design compliance With a trend towards lighter and slimmer POS display screens, SpacePole Arc places a greater emphasis on the design and aesthetics of your complete POS solutionMaximum adjustability A smooth tilt screen operation for screens weighing up to 12kg without any adjustment. Secondly, keyholes for quick mounting and servicing, and lower screw holes to level screens on slight angled Surfaces
Upgradeability Replace your current VESA mount without changing your existing SpacePole installation
Hygienic Antimicrobial powder coating (IGP-DURA®care) as standard for all black (02) metal solutions
Family Benefits
-
Stimulate sales Complement your environment with a more modern lookMaximise your investment With a quick and easy installation as well as providing efficiency to operators, setting the display to their personal preferences
Improve your existing POS installation Enhanced looks, ease of adjustment, and operator ergonomics
Keep your team safe Give associates the safe working environment they expect
