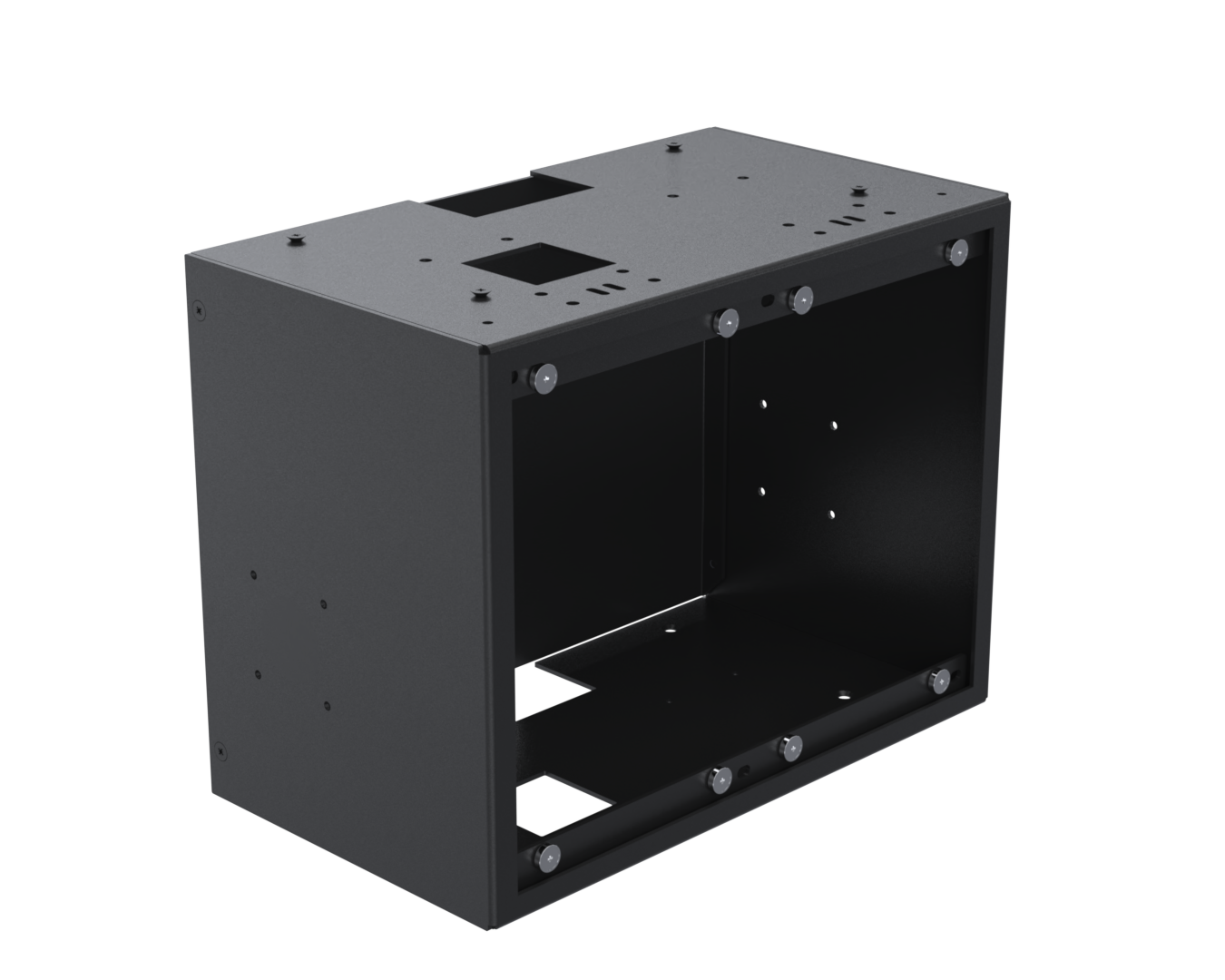

SCO Kiosk Center Module
SPSK200
The SCO Kiosk centre module sits underneath the SCO Kiosk Top module and is designed to accommodate two internal peripheral options, such as a printer and scanner combination. It can either be combined with the counter baseplate for a counter mounted solution or the SCO floorstand for a freestanding floor solution. Magnetic fixings for peripheral covers enables easy maintenance for the swapping of printer paper, for example.
-
- Two internal peripheral options
- Magnetic fixings for peripheral covers
- Optional secure fixing of peripherals
- Internal cable management for a neat installation
- Two mounting options for peripherals located on the sides of the centre module
Other colours available
Product Enquiry
If you have any queries about the product, pricing, or purchasing options, please click the button below.
Product Specifications
| Device Model | 1400 Series , GFS4470 , GFS4500 Serie , H400 , IM30 , Magellan 1500i , Mc Print2-3 , TM T88 , TM-M30 & TM-M30II , TSP143 |
|---|---|
| Main material | Metal |
| Product Version | 1.0 |
| Mounting | Hardware Specific Mounting Pattern |
| Mounting Type | Floor , Counter |
| Unit Weight | 15.19 lbs |
| Unit Depth | 8 in |
| Unit Height | 10.6 in |
| Unit Width | 13.8 in |
| Units per Box | 1 |
| Box Weight | 15.94 lbs |
| Box Depth | 18.8 in |
| Box Height | 18.8 in |
| Box Width | 11.1 in |
| Warranty | 5 Years |
Installation Guide
| Name | Download | File type | |
|---|---|---|---|
|
|
MK15-0393_v.1.0 (SCO Kiosk Center module)-A4.pdf | 463 KB |
