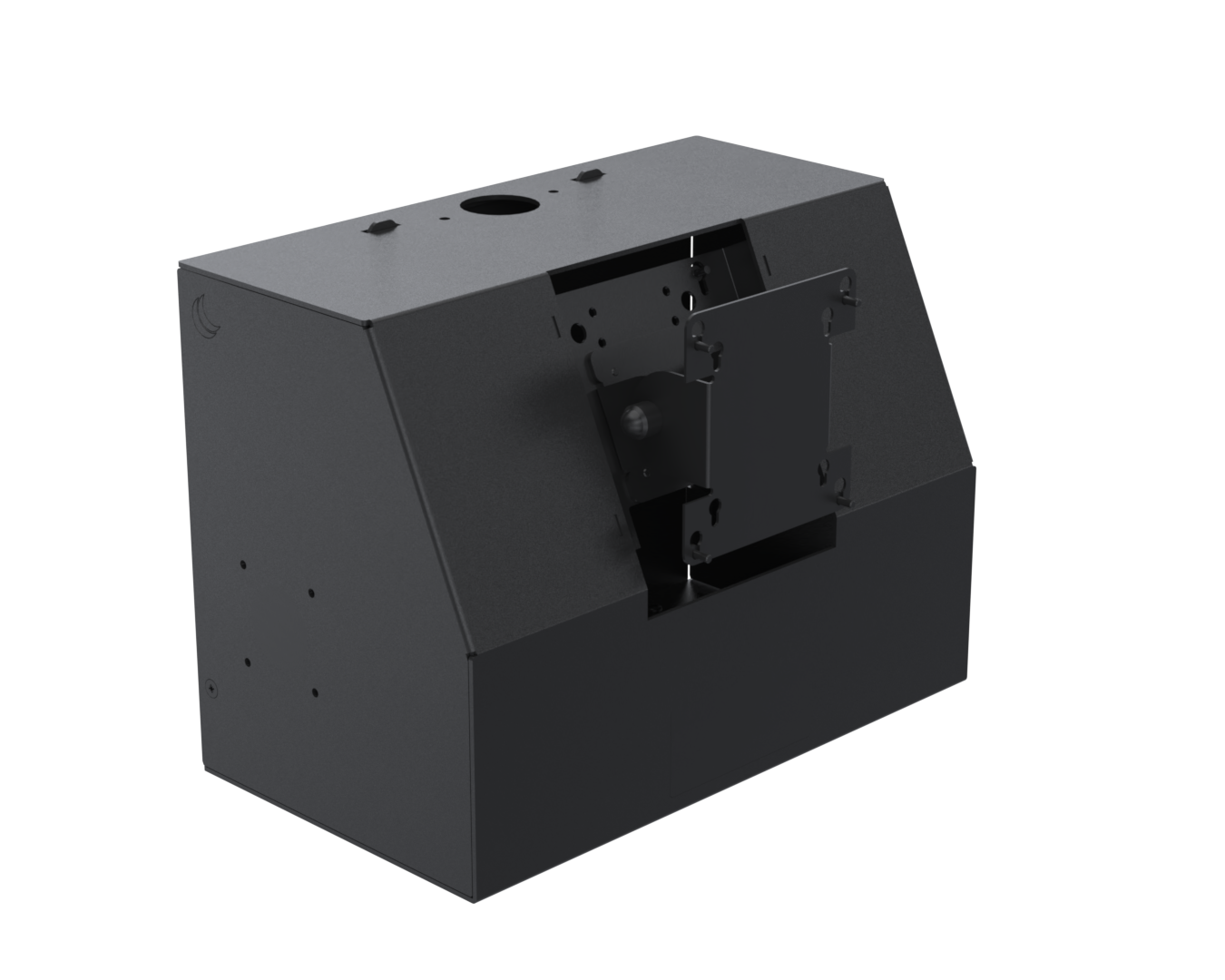

SCO Kiosk Top Module
SPSK100
The SCO kiosk top module is the heart of your kiosk solution, whether floor or counter mounted. The configurable nature of the top module also allows for the attachment of a peripheral arm for example, the addition of a payment device.
-
- Mount any VESA 75 or 100 compatible screen OR tablet from 15” to 24”
- Screen tilt option (60°) to cater for different heights of users for optimum viewing
- Key holes for easy screen mounting
- Internal cable management for a neat installation
- A range of mounting options for peripherals on the sides and at the top
Other colours available
Product Enquiry
If you have any queries about the product, pricing, or purchasing options, please click the button below.
Product Specifications
| Device Model | H400 , IM30 , Magellan 1500i , Mc Print2-3 , TM T88 , TM-M30 & TM-M30II , TSP143 |
|---|---|
| Hide Recycled Content Packaging | Yes |
| Hide Recycled Content Product | Yes |
| Main material | Metal |
| Product Version | 1.1 |
| Recycled content of packaging [%] | 0 |
| Screen size supported | 15" , 17" , 19" , 21" , 22" , 24" |
| VESA mounting standard | 75 x 75 , 100 x 100 |
| Mounting | VESA |
| Mounting Type | Floor , Counter |
| Unit Weight | 17.75 lbs |
| Unit Depth | 8 in |
| Unit Height | 10.4 in |
| Unit Width | 13.8 in |
| Units per Box | 1 |
| Box Weight | 18.63 lbs |
| Box Depth | 11.4 in |
| Box Height | 8.9 in |
| Box Width | 14.4 in |
| Warranty | 5 Years |
Installation Guide
| Name | Download | File type | |
|---|---|---|---|
|
|
MK15-0392_v.1.0 (SCO Kiosk Top module)-A4.pdf | 961 KB |
