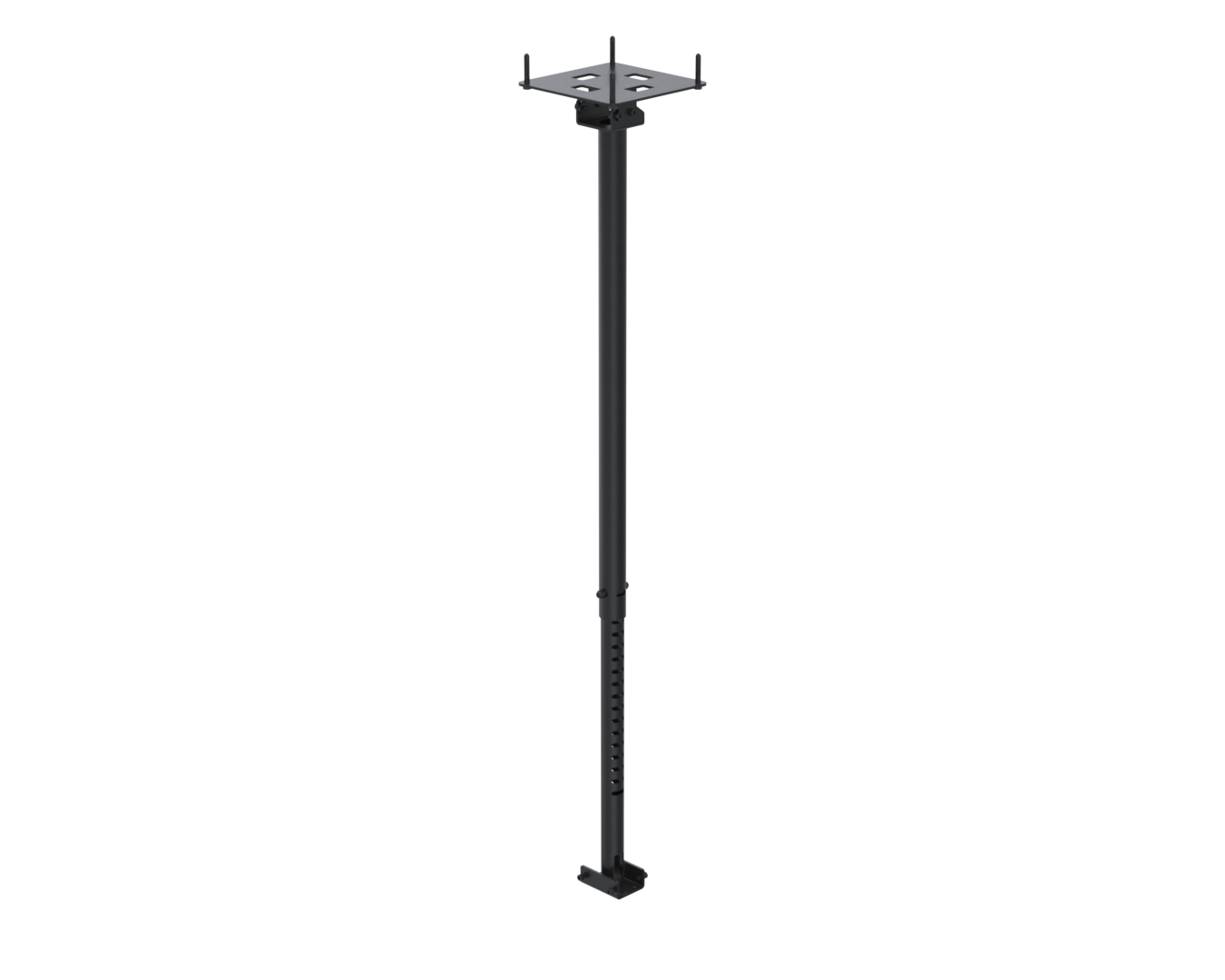

Extension pole for In-window ceiling mount
SPDS4310
Extension pole for In-window ceiling mount for OM55N-DS & OM55N-D
The Extension Pole for In-Window Ceiling Mount is designed to securely support the OM55N-DS and OM55N-D digital displays. Perfect for retail or storefront applications, it positions your display at the ideal height for maximum visibility. Whether for promotions or advertising, this extension pole ensures your content is showcased from the best angle, enhancing audience engagement and creating a sleek, professional setup.
- Height adjustment: 1160 to 1760mm
- 20 fixed positions to choose from
- Rotation of pole: 60 degrees
- Tilting of ceiling mount: 20 degrees
-
- Height adjustable from 1160 mm to 1760 mm with 20 fixed positions
- 60° pole rotation and 20° ceiling mount tilt for optimal screen alignment
- Maximum weight capacity: 50 kg
- Internal cable management preserves clean aesthetic in retail or storefront environments
- 5-year warranty
Other colours available
Product Enquiry
If you have any queries about the product, pricing, or purchasing options, please click the button below.
Product Specifications
| Hide Recycled Content Product | Yes |
|---|---|
| Main material | Metal |
| Product Version | 1.0 |
| Recycled content of packaging [%] | 85 |
| Max VESA mount weight (kg) | 50 |
| Mounting | Hardware Specific Mounting Pattern |
| Mounting Type | Ceiling |
| Height adjustable? | Yes |
| Unit Weight | 14.18 lbs |
| Unit Depth | 9.4 in |
| Unit Height | 61.5 in |
| Unit Width | 9.4 in |
| Units per Box | 1 |
| Box Weight | 8.66 lbs |
| Box Depth | 7.7 in |
| Box Height | 5.1 in |
| Box Width | 43.1 in |
| Warranty | 5 Years |
Installation Guide
| Name | Download | File type | |
|---|---|---|---|
|
|
MK15-0417_v.1.0 (Extension pole for in-window ceiling mount).pdf | 547 KB |
