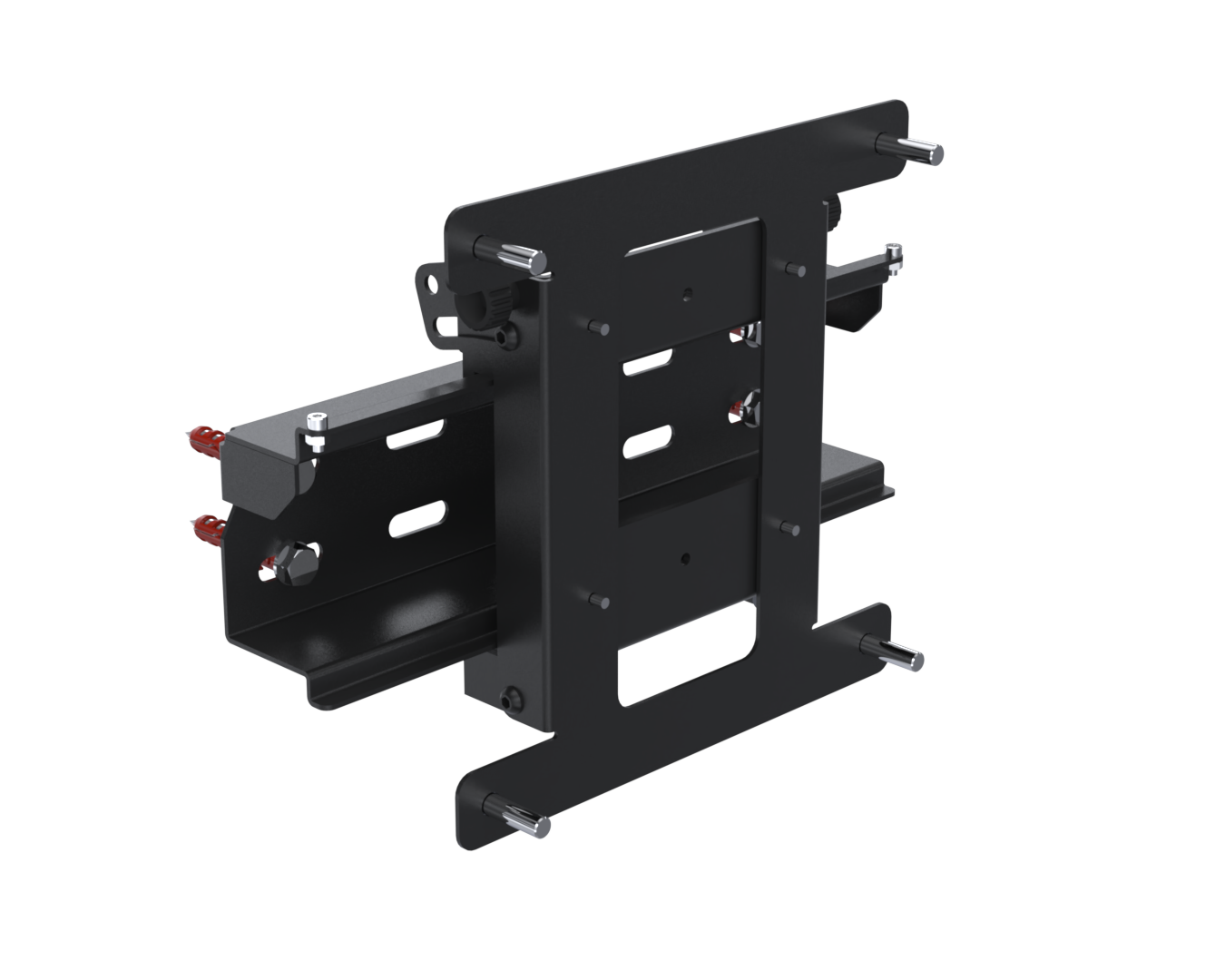

Tilting wall mount for screens up to 43" (VESA 100 and VESA 200)
WT2210AA-02
Transform your space with our Universal Tilting Wall Mount for single screens up to 43". With adjustable tilt for the perfect viewing angles, it's easy to install and compatible with leading digital signage brands.
-
• Universal tilting Single screen wall mount for screens up to 43"
• Easy hook-on mounting of screen
• Supports VESA 100x100, 100x200, 200x100 and 200x200
• Weight capacity: 80 kg
• Include fixing to secure screen (bottom)
• Quick release plunger can be added for easy installation and maintenance
• Tilt (degrees): 0-15° for < 43” and 0-10° for 43” screens
Product Specifications
| Main material | Metal |
|---|---|
| Product Version | 1.0 |
| Color Name | Black |
| Color Type | Structured , Anti-microbial |
| Enclosure Format | Single Sided |
| Max VESA mount weight (kg) | 80 |
| Mounting | VESA |
| Mounting Type | Wall |
| Screen size supported | 15" , 17" , 19" , 21" , 24" , 27" , 32" , 37" , 42" , 43" |
| VESA mounting standard | 100 x 100 , 200 x 200 |
| Unit Depth | 3.4 in |
| Unit Height | 9.1 in |
| Unit Width | 9.1 in |
| Unit Weight | 4.83 lbs |
| Units per Box | 1 |
| Box Depth | 8.4 in |
| Box Height | 7.2 in |
| Box Width | 10.4 in |
| Box Weight | 5.07 lbs |
| Warranty | 5 Years |
Product Sheet
| Name | Download | File type | |
|---|---|---|---|
|
|
WT2210AA-02.pdf | 279 KB |
Installation Guide
| Name | Download | File type | |
|---|---|---|---|
|
|
MK15-0489_V1.0 (tilting wall mount for screens up to 43 inch).pdf | 687 KB |
