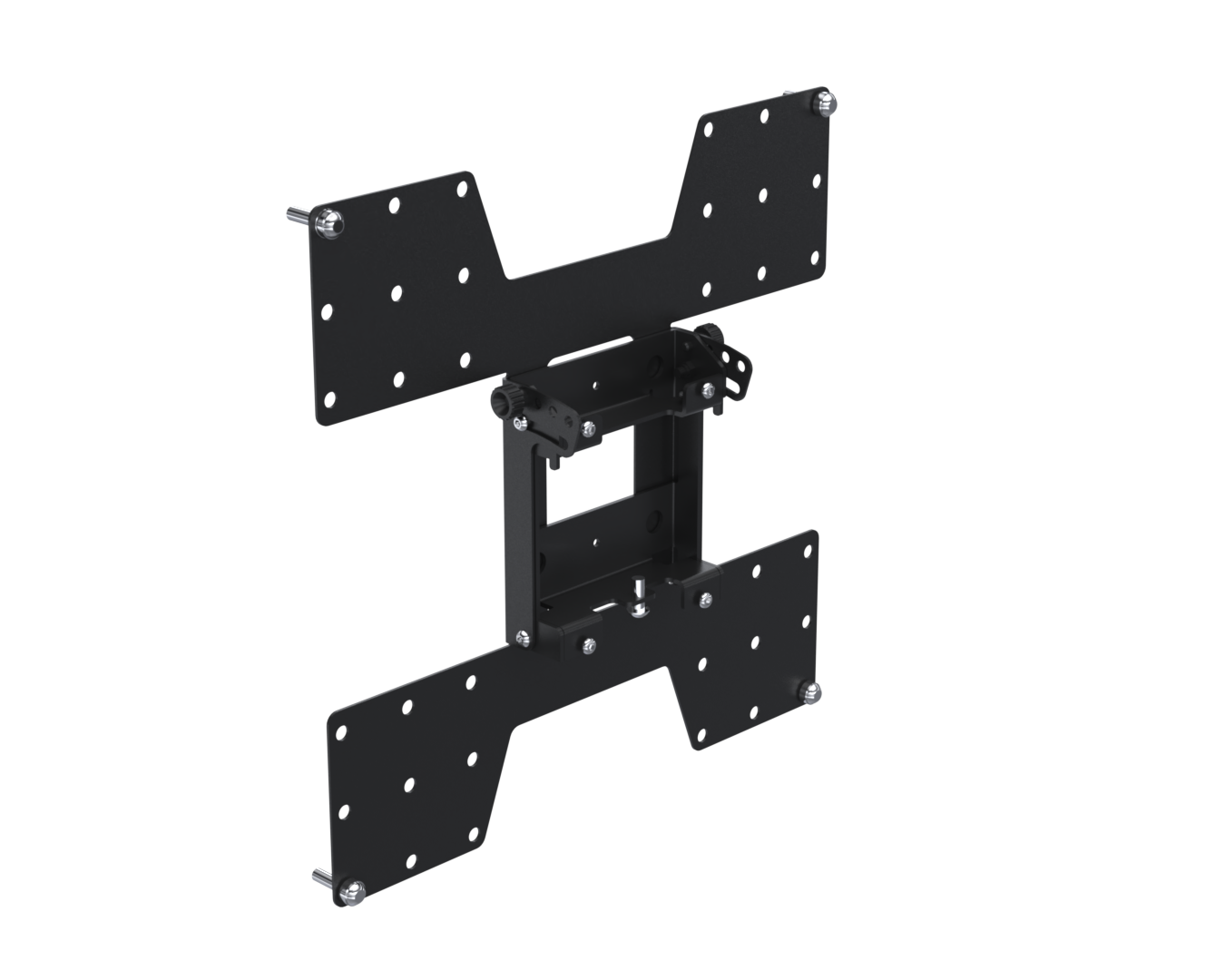

VESA 200/300/400 bracket w. tilt
SPDS2119-02
The VESA 200/300/400 bracket with tilt securely mounts your flat-screen TV or monitor, supporting VESA 100 to 400 patterns. Its sturdy design keeps your screen flush against the wall for a sleek look and fixed position, making it perfect for optimal viewing in any room. Easy to install and built to last, it's a stylish and functional choice for home theaters or offices.
- Hook-on design for easy installation and maintenance
- Fixing to ensure screen stays fixed to the rail or ceiling pole
- Tilting in fixed increments: 0, 5, 10, 15 degrees
- Handscrew for easy set-up of tilting angle
Product Specifications
| Main material | Metal |
|---|---|
| Product Version | 1.0 |
| Color Name | Black |
| Color Type | Structured , Anti-microbial |
| Enclosure Format | Single Sided |
| Max VESA mount weight (kg) | 45 |
| Mounting | VESA |
| Mounting Type | Wall , Ceiling |
| Screen size supported | 15" , 17" , 19" , 21" , 24" , 27" , 32" , 37" , 42" , 43" , 48" , 50" , 55" |
| VESA mounting standard | 100 x 100 , 100 x 200 , 200 x 100 , 200 x 200 , 200 x 300 , 200 x 400 , 300 x 100 , 300 x 200 , 300 x 300 , 300 x 400 , 400 x 200 , 400 x 300 , 400 x 400 |
| Unit Depth | 2.6 in |
| Unit Height | 16.5 in |
| Unit Width | 16.5 in |
| Unit Weight | 5.56 lbs |
| Units per Box | 1 |
| Box Depth | 17.1 in |
| Box Height | 17.1 in |
| Box Width | 3.5 in |
| Box Weight | 5.84 lbs |
| Warranty | 5 Years |
Product Sheet
| Name | Download | File type | |
|---|---|---|---|
|
|
spi-Hook-and-Rail-Product-Sheet-US-r2.pdf | 1393 KB |
Installation Guide
| Name | Download | File type | |
|---|---|---|---|
|
|
MK15-0356_v.1.1 (VESA brackets (tilt))_web.pdf | 457 KB |
