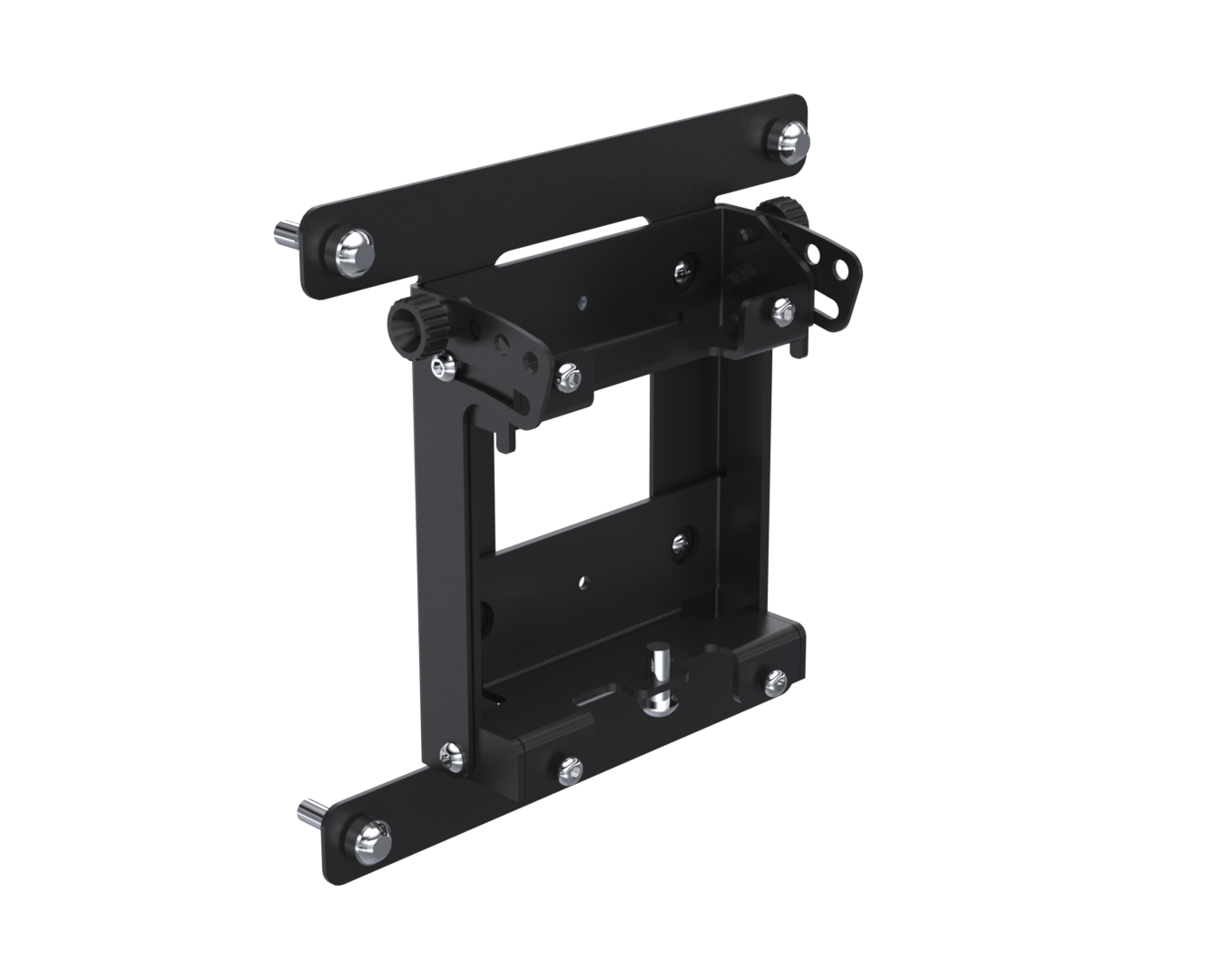

VESA 200 bracket w. tilt
SPDS2104
The VESA 200 Bracket with Tilt securely mounts your flat-screen TV or monitor, supporting VESA 100 to 200 patterns. Its sturdy design keeps your screen flush against the wall for a sleek look and fixed position, making it perfect for optimal viewing in any room. Easy to install and built to last, it's a stylish and functional choice for retail, hospitality and corporate settings.
-
- Hook-on design for easy installation and maintenance
- Fixing to ensure screen stays fixed to the rail or ceiling pole
- Tilting in fixed increments: 0°, 5°, 10° and 15°
- Handscrew for easy set-up of tilting angle
- 5-year warranty
Other colours available
Product Enquiry
If you have any queries about the product, pricing, or purchasing options, please click the button below.
Product Specifications
| Hide Recycled Content Product | Yes |
|---|---|
| Main material | Metal |
| Product Version | 1.0 |
| Recycled content of packaging [%] | 82 |
| Enclosure Format | Single Sided |
| Max VESA mount weight (kg) | 45 |
| Mounting | VESA |
| Mounting Type | Wall , Ceiling |
| Screen size supported | 15" , 17" , 19" , 21" , 24" , 27" , 32" , 37" , 42" , 43" |
| VESA mounting standard | 100 x 100 , 200 x 200 |
| Unit Weight | 3.28 lbs |
| Unit Depth | 2.6 in |
| Unit Height | 9.1 in |
| Unit Width | 9.1 in |
| Units per Box | 1 |
| Box Weight | 3.44 lbs |
| Box Depth | 10.7 in |
| Box Height | 10.2 in |
| Box Width | 3 in |
| Warranty | 5 Years |
Installation Guide
| Name | Download | File type | |
|---|---|---|---|
|
|
MK15-0356_v.1.1 (VESA brackets (tilt))_web.pdf | 457 KB |
