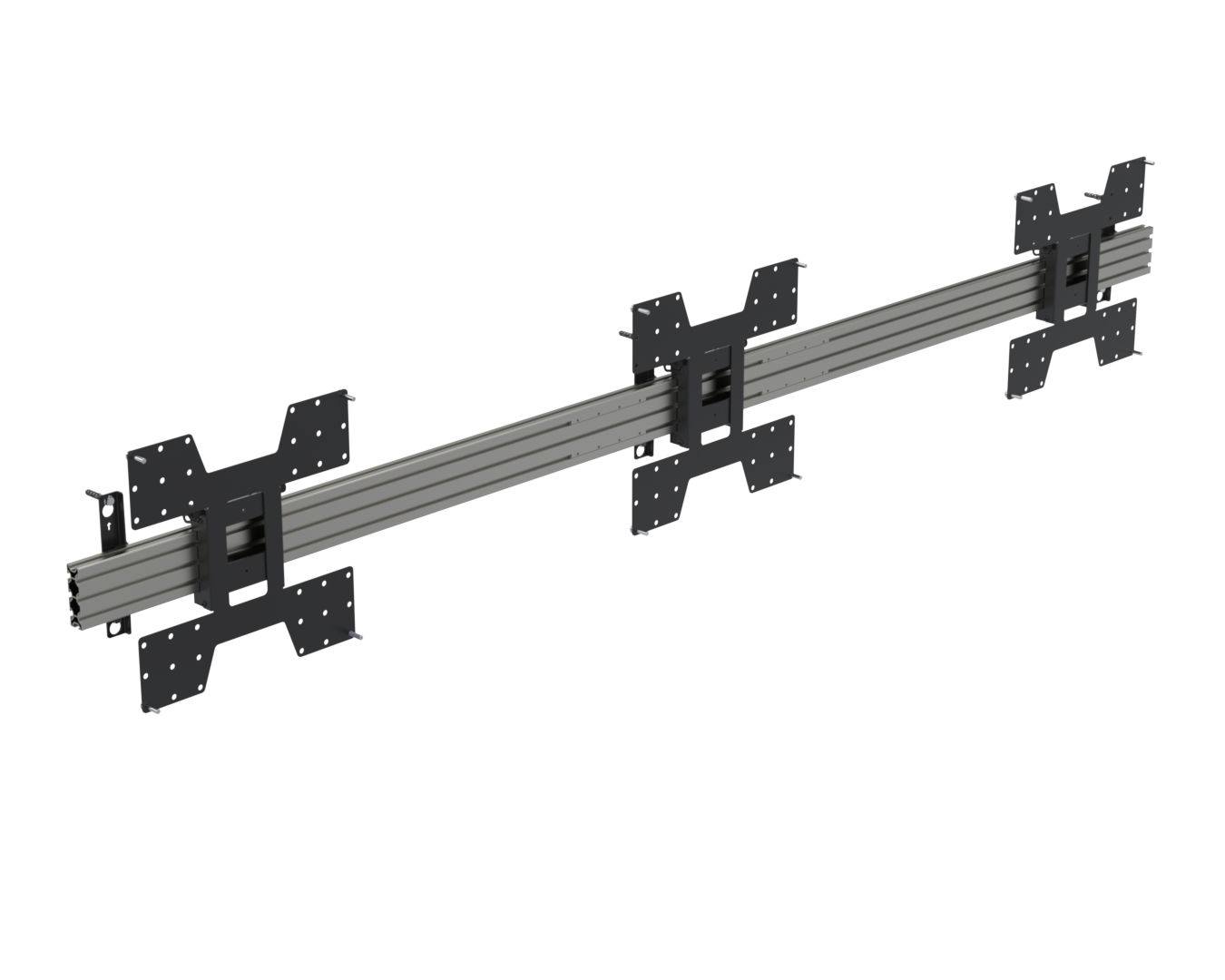

Menu board mount, with tilt, for 3 screens (landscape) up to 55" (max VESA 400)
WT443268LL
Our wall mounted Menu Board with tilt is designed for three screens (up to 55") in landscape orientation. It supports max of VESA 400 and features adjustable tilt for optimal viewing angles, capturing your customers attention.
-
• Compatible with 3 screens up to 55” in landscape orientation
• Includes micro adjustment
• Easy hook-on mounting of screens
• Includes fixing to secure screens at the bottom
• Quick release - Optional
• Rail can be cut to size for smaller screens
• Tilt (degrees): 0-15° for <55" and 0-10° for 55" screens
Product Specifications
| Main material | Metal |
|---|---|
| Product Version | 1.0 |
| Enclosure Format | Single Sided |
| Max VESA mount weight (kg) | 150 |
| Mounting | VESA |
| Mounting Type | Wall |
| Screen size supported | 32" , 37" , 42" , 43" , 48" , 50" , 55" |
| VESA mounting standard | 100 x 100 , 200 x 200 , 200 x 300 , 200 x 400 , 300 x 200 , 300 x 300 , 300 x 400 , 400 x 200 , 400 x 300 , 400 x 400 |
| Unit Depth | 3.1 in |
| Unit Height | 16.5 in |
| Unit Width | 105.5 in |
| Unit Weight | 32.8 lbs |
| Units per Box | 1 |
| Box Depth | 19.3 in |
| Box Height | 5.5 in |
| Box Width | 47 in |
| Box Weight | 34.44 lbs |
| Warranty | 5 Years |
Product Sheet
| Name | Download | File type | |
|---|---|---|---|
|
|
WT443268LL-A2.pdf | 296 KB |
Installation Guide
| Name | Download | File type | |
|---|---|---|---|
|
|
MK15-0497_V1.0 (menu board mount for multiple screens up to 55 inch).pdf | 1448 KB |
