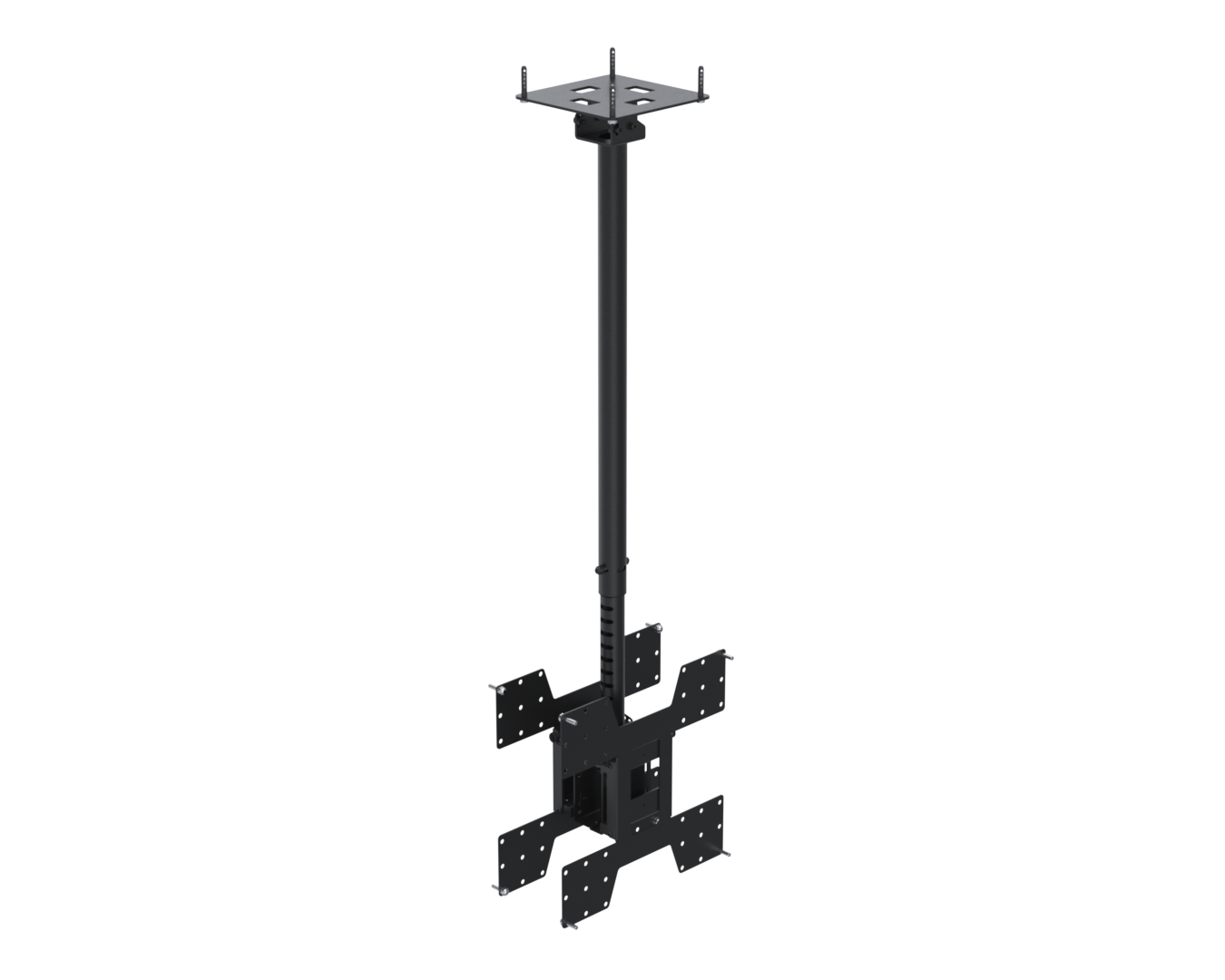

Back to back, telescopic ceiling mount for screens up to 75" (VESA 200 to VESA 400)
BT4420AA
Maximise the potential of your digital signage messaging, with our back-to-back telescopic ceiling mount, designed for screens up to 75" (compatible with VESA 200 and VESA 400). Offering flexibility and a sleek design for your environment.
-
- Back-to-back display solution for screens up to 75"
- Ceiling mounted
- Supports portrait and landscape orientation
- Height adjustment: 1000 to 1500mm (20 fixed positions)
- Rotation of pole: 60°
- Can be installed on sloped ceilings with an angle of up to 20°
- Key holes for easy screen mounting
- 5-year warranty
Other colours available
Product Enquiry
If you have any queries about the product, pricing, or purchasing options, please click the button below.
Product Specifications
| Hide Recycled Content Packaging | Yes |
|---|---|
| Hide Recycled Content Product | Yes |
| Main material | Metal |
| Product Version | 1.0 |
| Recycled content of packaging [%] | 0 |
| Enclosure Format | Back-To-Back |
| Mounting | VESA |
| Mounting Type | Ceiling |
| Screen size supported | 32" , 37" , 42" , 43" , 48" , 50" , 55" , 60" , 65" , 75" |
| VESA mounting standard | 100 x 100 , 200 x 200 , 200 x 300 , 200 x 400 , 300 x 200 , 300 x 300 , 300 x 400 , 400 x 200 , 400 x 300 , 400 x 400 |
| Unit Weight | 21.65 lbs |
| Unit Depth | 9.4 in |
| Unit Height | 39.4 in |
| Unit Width | 16.5 in |
| Units per Box | 1 |
| Box Weight | 27.51 lbs |
| Box Depth | 19.3 in |
| Box Height | 5.5 in |
| Box Width | 47 in |
| Warranty | 5 Years |
Installation Guide
| Name | Download | File type | |
|---|---|---|---|
|
|
MK15-0494_V1.0 (Telescopic ceiling mounts).PDF | 1620 KB |
